Tripod Turnstile
The tripod are the most popular turnstile that’s widely used for access control to stadiums, factories, banks, dormitories or in public transit sites where the access is controlled or monitored and one person entry is preferred. They can be integrated with all types of card reader, ticketing machines and are suitable for outdoor sheltered installation.

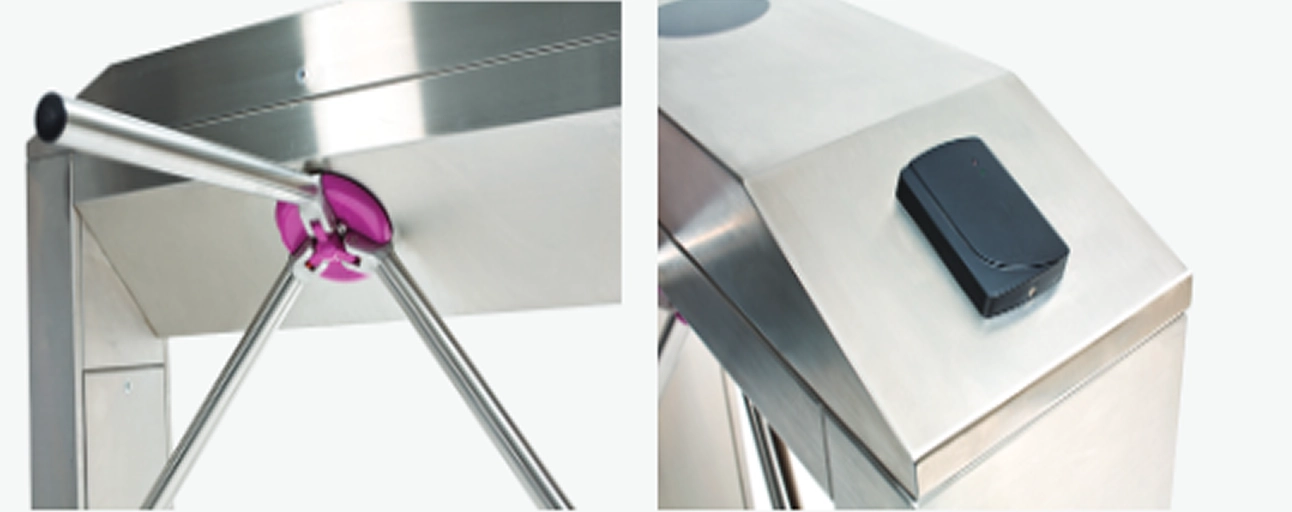

Drive Mechanism
The tripods are usually at lock position during normal operation. Upon valid signal, the tripod arm mechanism will unlock. The arm will relock after each complete arm rotation or time-out preset by the controller. Additional feature on selected model : Tripod arm will unlock and drop allowing access in the event of a power failure. The rotating arm adaptor comes with powder coated magenta color suited for outdoor installation and other color option upon request.
Key Features
The tripods are usually at lock position during normal operation. Upon valid signal, the tripod arm mechanism will unlock. The arm will relock after each complete arm rotation or time-out preset by the controller. Additional feature on selected model : Tripod arm will unlock and drop allowing access in the event of a power failure. The rotating arm adaptor comes with powder coated magenta color suited for outdoor installation and other color option upon request.
Housing
Top opening cover and side door on the turnstile. All electrical components are serviceable from the top cover. IP 65 design housing can be installed in semi-shelter environment.
Materials
| Component | SS304 stainless steel housing, stainless steel crossbar. |
| Optional housing | Mild steel and SS316 can be supply upon request |
Technical Specifications
| Input Voltage | 230V AC, 50/60Hz |
| Power Rating | 100,000 |
Optional:
- Mounting of reader with acrylic cover
- LED (Arrow/Cross) signage with acrylic cover
- Customize design for other device mounting
